PRO-LINK

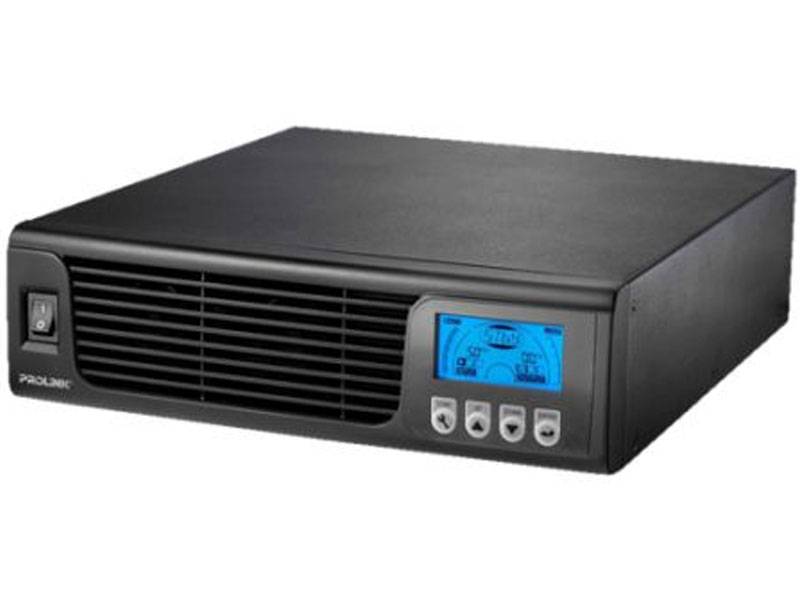

Prolink Inverter 3000VA 24V (IPS3000)

Overload and short circuit protection, auto restart while AC is recovering, LCD and LED indicator

Out of stock

Rs. 62300

Quantity:

Add to Cart

SKU: IPS3000

Call Now

Chat In WhatsApp

Features

· Long backup power solution for home and office appliances

· Pure sine wave inverter and charger system

· Simple steps to setup, automatic, simplicity and durability

· Perfect solution for power cuts and load shedding

Capacity 3000VA

Input

Nominal Voltage 220/ 230/ 240VAC

Voltage Range

Narrow Range 170 - 280VAC

Wide Range 90 - 280VAC

Surge Ability L-N 1KVA

L/N-GND 2KVA

Output Output Voltage Regulation (Battery Mode):+10%/ -18%

Frequency 50Hz / 60Hz

Frequency Regulation +/-0.1 Hz (Bat. Mode)

Transfer Time 10 - 20ms Typical, 40ms (max)

Waveform Pure Sinewave

Battery

Battery Voltage 24V

Overcharge Protect 30V

Charger

Charger Current 20Amp

Overcharge Protect 30V

Indication

LCD Display AC Mode, Inverter Mode, Charger Mode, Load Level, Fault

Alarm

Overload High DC Voltage - Continuously sounding

Low Battery at Inverter Mode beep every 2 seconds

Fault Continuously beep

Fan Fault beep 2 time every second

Efficiency

AC to AC >95%

DC to AC >80%

Physical

Dimension (mm) D x W × H:268 x 330 x 76

Net Weight (kgs) 4.9

Environment

Humidity 0~95% Relative Humidity.0~40°C

Operating Environment 0°C ~ 45°C; 5% ~ 95% non-condensing

Noise Level Less than 60dBA
