PRO-LINK

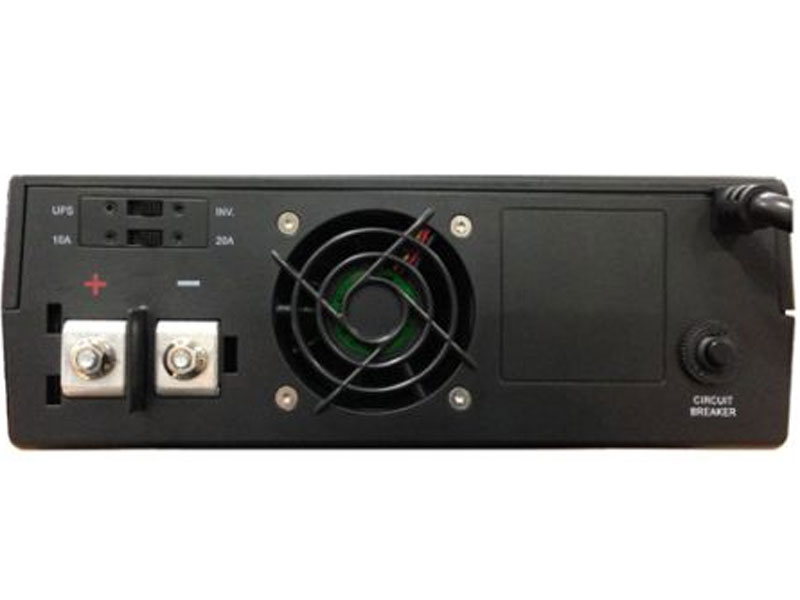

Prolink Inverter 1200VA 12V (IPS1200)

Overload and short circuit protection, auto restart while AC is recovering, LCD and LED indicator

In stock (5 units), ready to be shipped

Rs. 17000

Quantity:

Add to Cart

SKU: IPS1200

Call Now

Chat In WhatsApp

Features

· Simulated sine wave inverter

· 10A or 20A charging current

· LCD and LED indicators

· Overload and short circuit protection

· Auto restart while AC is recovering

Specifications:

Capacity 1200VA

Input

Nominal Voltage 220/ 230/ 240VAC

Voltage Range

Narrow Range 170 – 280 VAC (UPS mode)

Wide Range 90 - 280VAC

Output

Nominal Voltage 230VAC

Output Voltage Regulation (Battery Mode):+10%/ -18%

Frequency 50Hz or 60Hz

Frequency Regulation +/-0.1 Hz (Bat. Mode)

Transfer Time 10 - 20ms Typical, 40ms (max)

Waveform Simulated Sinewave

Battery

Charger Current 10Amp / 20Amp (Selectable)

DC Voltage 12V

Overcharge Protect 15V

Indication

LED Display Fault – Red Lighting

Battery Mode - Yellow

Low Battery – Yellow flashing

Shutdown Mode – Yellow flashing

Charging Mode - Green flashing

Overload - Red flashing

LCD Display Input Voltage, Output Voltage,

Load level, Battery level, Fault alarm

Alarm

Sounding Overload - Sounding every 0.5 second

Low Battery - Sounding every 2 seconds

Overcharging Fault – Continuously sounding

Efficiency

AC to AC >95%

DC to AC >80%

Physical

Dimension (mm) D x W × H 293 x 231.5 x 82.5

Net Weight (kgs) 2.35

Environment

Humidity 0~95% Relative Humidity. 0~40°C

Noise Level Less than 50dBA
