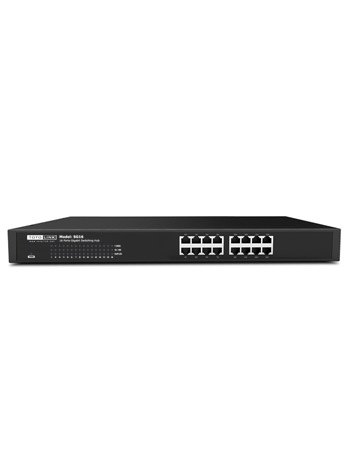

Totolink SG16 16-Port Gigabit Unmanaged Switch

HIGH-TECH PERFORMANCE,EASILY NETWORK EXPANDING WITH GIGABIT SPEED

Rs13650 Rs 12285

Weight : N/AKG
Code : SG16
Dial/Whatsapp/Viber 9851134183 to order
Product Description

 Description


SG16 is a 16-port unmanaged switch. It is a smart high performance gigabit switch that provides an ideal solution for workgroup or department Gigabit applications. With 16 10/100/1000BASR-T (AUTO-MDIX) Gigabit Ethernet ports, this switch can provide full bandwidth up to 2000Mbps in full duplex mode. Also it supports easy-to-view LED indicators for cable installation and normal operational diagnostics. It can be installed on desktop or in rack-mount.

HIGH-TECH PERFORMANCE
The high performance switch, which complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards, provides 16 10/100/1000Mbps auto-negotiation RJ-45 ports with LED indicators to monitor link status and activity. Auto MDI/MDI-X crossover on all ports helps to figure out if the link needs a straight-through or cross-over connection automatically. Besides, these ports detect the network speed and auto-negotiate (either 10, 100, or 1000 Mbps) to provide maximum speed possible for each device connected to your network.

EASILY NETWORK EXPANDING WITH GIGABIT SPEED
You can add up to fifteen devices with a simple Ethernet cable without configuration and every port can deliver gigabit speed for better network capacity. It can enormously increase the speed of your network server with fast Ethernet connectivity. Just plug and play, it is convenient for expanding your wired home network to more device.

Features

  • Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.
  • 16 10/100/1000Mbps auto-negotiation ports.
  • Supports flow control for each port.
  • Supports store and forward switching scheme capability.
  • Supports NWay auto-negotiation for all ports.
  • Supports auto MDI/MDIX for each port.
  • Supports per-port bandwidth control.
  • Supports PHY register read/write access.

ADDITIONALGENERAL

BRAND TOTO LINK
MODEL SG16
COLOR Black
STANDARDS IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
INTERFACE 16*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
LED Power, Link/Activity
MAC ADDRESS LEARNING Auto-learning, auto update
MAC ADDRESS TABLE 8k
NETWORK MEDIA 10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)
EIA/TIA-568 100Ω STP (100m max.)
100Base-Tx: UTP Cat 5, 5e cable (100m, max.)
EIA/TIA-568 100Ω STP (100m max.)
1000Base-T: UTP Cat 5, 5e cable (100m, max.)
BACKUP BANDWIDTH 32Gbps
TRANSMISSION METHOD Store-and-forward
FRAME FILTERING 10Mbps: 14,880pps
100Mbps: 148,800pps
1000Mbps: 1,488,000pps
POWER SUPPLY 100V~240VAC, 50/60Hz
ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
PRODUCT DIMENSIONS 440 x 160 x 44.6 mm
WEIGHT 2.5 kg
SALES PACKAGE
IN THE BOX Main Unit
Power Cable
User Manual
Warranty Card
WEIGHT 3.3000
WARRANTY
WARRANTY PERIOD 1 Year Manufacturer Warranty
