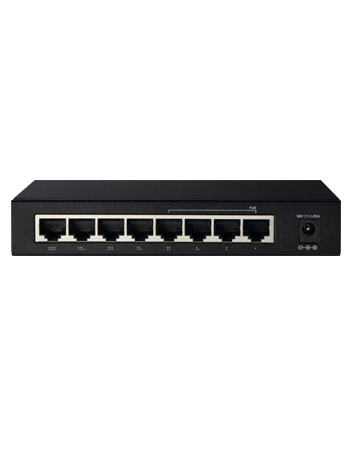

Totolink SW804P 8-Port 10/100Mbps Ethernet Switch with 4-Port PoE

POWER OVER ETHERNET (POE),EASY TO USE

Rs. 8700

In stock, ready to be shipped

Quantity:

Add to Cart

SKU: SW804P

Call Now

Chat In WhatsApp

Description

The SW804P is a 8-Port 10/100Mbps Ethernet Switch with 4 ports support Power over Ethernet(PoE). All these four ports can detect connected devices automatically and deliver power & data to all IEEE 802.3af compliant PoE powered devices through one Ethernet cable. SW804P supports plug-and-play and can also be simply connected to a server, a hub or a switch using straight cable or crossover cable.

POWER OVER ETHERNET (POE)

SW804P provides 4 PoE ports to supply power & data to PoE powered devices, such as ceiling mount AP, In-wall AP, IP camera etc. It compies with IEEE 802.3af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards and offers an overload LED indicator to monitor the switch load status for better system protection.

EASY TO USE

SW804P supports plug and play, no configuration required. It can expand your wired home network to more devices.

Features

Complies with IEEE 802.3af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x.
4*10/100Mbps PoE Ports, 4*10/100Mbps auto-negotiation RJ45 Ports.
Up to 15.4Watt for each PoE port.
LED indicators for monitoring power, PoE, overload status, link and activity.
Metal case, desktop or wall-mounting design.
External power supply.
More power saving and higher performance.

ADDITIONALGENERAL

BRAND TOTO LINK

MODEL SW804P

COLOR Black

STANDARDS IEEE 802.3af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

INTERFACE 4*10/100Mbps PoE Ports, 4*10/100Mbps auto-negotiation RJ-45 Ports

LED 1*Power, 4*PoE, 1*Overload, 8* Link/Act

MAC ADDRESS LEARNING Auto-learning, auto-aging

BACKUP BANDWIDTH 1.6Gbps

TRANSMISSION METHOD Store and Forward

ENVIRONMENT Operating Temperature: 0â„ƒ~40â„ƒ (32â„‰~104â„‰)

Storage Temperature: -40~70â„ƒ (-40â„‰~158â„‰)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing

OTHER FEATURES Data Rate: 100/100Mbps at Half/Full Duplex

PRODUCT DIMENSIONS 158.4 x 106.5 x 27 mm

WEIGHT 400 g

SALES PACKAGE

IN THE BOX Main Unit

Power Cable

User Manual

Warranty Card

WEIGHT 700.0000

WARRANTY

WARRANTY PERIOD 2 Year Manufacturer Warranty
