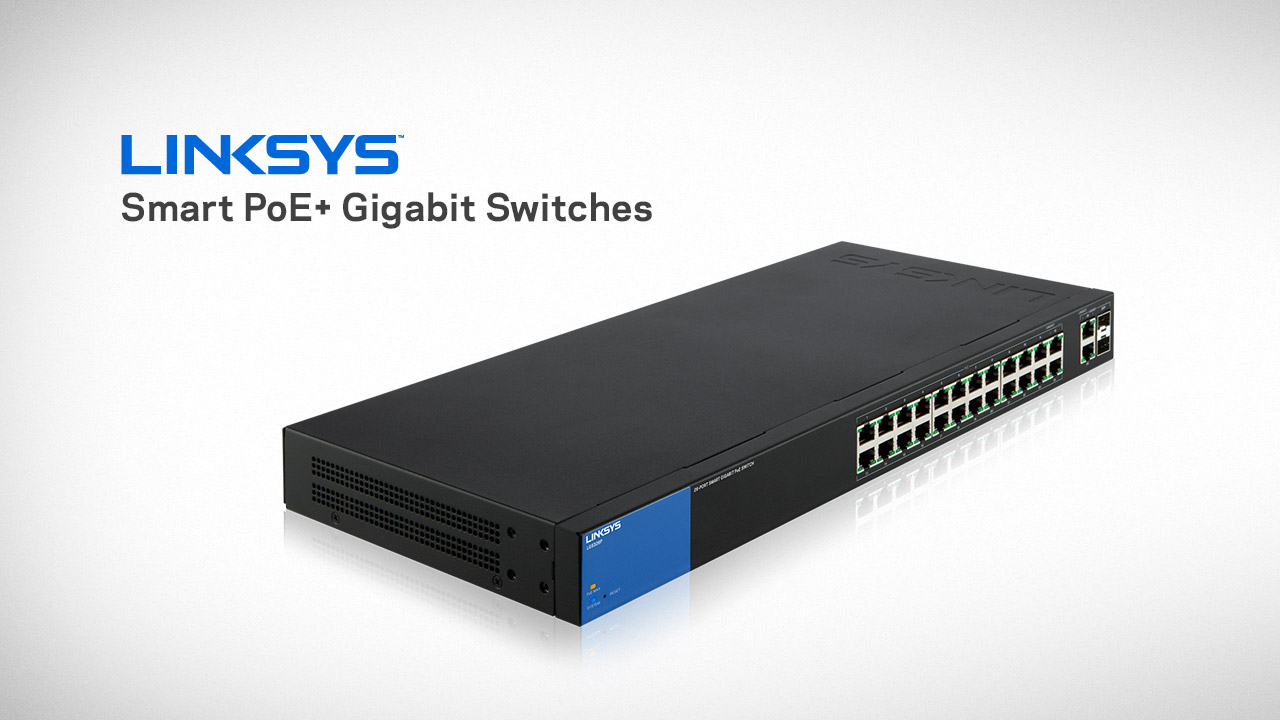

Linksys Business LGS326P 24-Port Gigabit PoE+ (192W) Smart Managed Switch + 2x Gigabit SFP/RJ45 Combo Ports

LINKSYS

Linksys Business LGS326P 24-Port Gigabit PoE+ (192W) Smart Managed Switch + 2x Gigabit SFP/RJ45 Combo Ports

Designed for business-class management, security, speed, and quality of service.

In stock (10 units), ready to be shipped

Rs. 70125

Quantity:

Add to Cart

SKU: LGS326P-AP

Call Now

Chat In WhatsApp

Integrated Power Over Ethernet Plus
Proven Performance and Reliability
Easy Configuration and Management
Advanced Network Security
IPv6 Support
Enhanced QoS
Enhanced Security
Meets EEE (Energy Efficient Ethernet) 802.3az standard

TECHNICAL SPECS

Model Name:

LGS326P

Network Standards:

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3x

IEEE 802.3ad

IEEE 802.3az

IEEE 802.3af

IEEE 802.3at

IEEE 802.1d

IEEE 802.1q/p

IEEE 802.1X

Number of Ports with PoE+ Support:

Memory:

128 MB

LEDs:

System (blue), Link/Act/PoE (green/green)

System Power Consumption without PoE+:

110V:28.58W,

220V:26.67W

Forwarding Rate:

38.69 Mpps

Switching Capacity:

52 Gbps

MAC Address Table Size:

Jumbo Frame (FE, GE):

Fans:

Two, 8,200 rpm

Dimensions (LxWxH):

440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)

Weight:

3.096 kg (6.81 Ibs.)

Power Dedicated to PoE+:

192 W

Power Input:

100–240V

50-60 Hz

(3.5A max)

Operating Temperature:

0 to 50°C (32 to 122°F)

Storage Temperature:

-40 to 70°C (-40 to 158°F)

Storage Humidity:

10 to 90% RH (non-condensing)

Spanning Tree:

IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree

Link Aggregation:

IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group

VLAN:

Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication

Number of VLANs Supported:

128 active VLANs (4,096 range)

Auto Voice VLAN:

VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

IGMP Snooping:

IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups

HOL Blocking Prevention:

Head of line (HOL) blocking prevention

Port Mirroring:

Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer

Security Features:

802.1x Radius authentication

DHCP snooping

IP-MAC binding

Port security supports limited dynamic lock and locked MAC address

Management access control

Storm Control:

Broadcast, flooding, and multicast

RMON:

Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis

Management Interface:

HTTP

HTTPS

Other Management:

Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP

SNMP:

Version 1

Version 2c

Firmware Upgrade:

Web Browser (HTTP/HTTPS)

TFTP

QoS - Class of Service:

Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based

Combo Ports (RJ45 + SFP):

2 combo on ports g25, g26

Copper FE/GE Ports (RJ45):

g01–g12, g13-g24

Green Power Mode:

EEE+, Short Reach + Energy Detect

QoS - Priority Levels:

4 hardware queues

QoS - Scheduling:

Priority queuing and weighted round robin (WRR)

Total System Ports:

26GE
