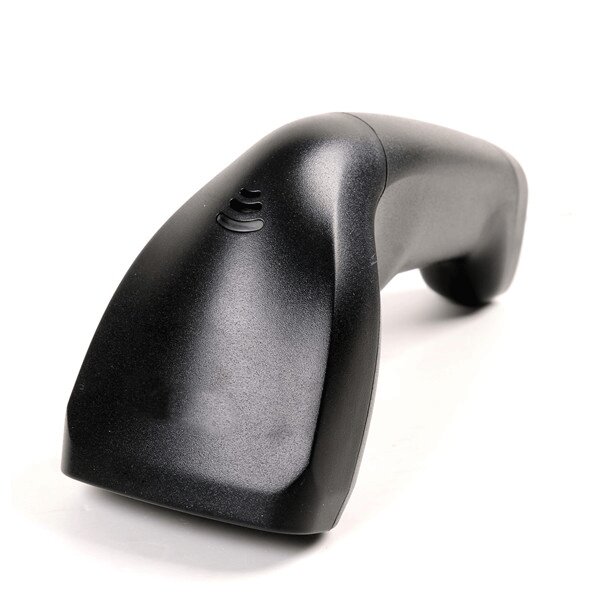

xLab XBS-763L Barcode Scanner(Wired Laser Barcode Reader)

Handheld Linear Image Scanner

Code

: XBS-763L

Manufacturer

Availability

: In Stock

Rs. 4850 Rs. 4950
Qty :

Function

● 1D Barcode Scan ● 150 scans per sec ● Two-colors LED

Light Source

625 nm visible LED

Optical System

2, 500 pixel linear sensor

Microprocessor

32 bit

Depth of Field

3 mil: 0 mm
4 mil: 0 – 40 mm
5 mil: 0 – 45 mm
7.5 mil: 0 – 50 mm
10 mil: 0 – 60 mm
13 mil: 0 – 75 mm
20 mil: 0 – 90 mm

Scan Rate

150 scans per second

Minimum Bar Width

3 mil (Code 39) > 60% PCS

Print Contrast

25% @ UPC/EAN, 100%

Indicator

Two-colors LED

Beeper Operation

Programmable tone & beep time

System Interface

Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS

Dimensions

161.5 × 72.5 × 55.2 mm (device only)

Cable

Standard 2M straight

Input Voltage

5 VDC ±5%

Standby Current

55 mA typical

Operating Current

90 mA (AVG), 150 mA (max.)

EMC

CE & FCC DOC compliance, VCCI, BSMI

Operating Temperature

0°C – 50°C (32°F – 122°F)

Storage Temperature

-20°C – 60°C (-4°F – 140°F)

Humidity

5% – 95% RH (non-condensing)

Light Level

6, 000 Lux (fluorescence)

Drop Durability

Designed to withstand 1.5M drops

1D Barcode

UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limite
