Asus Prime Z490-P Intel Z490 (LGA 1200) ATX motherboard

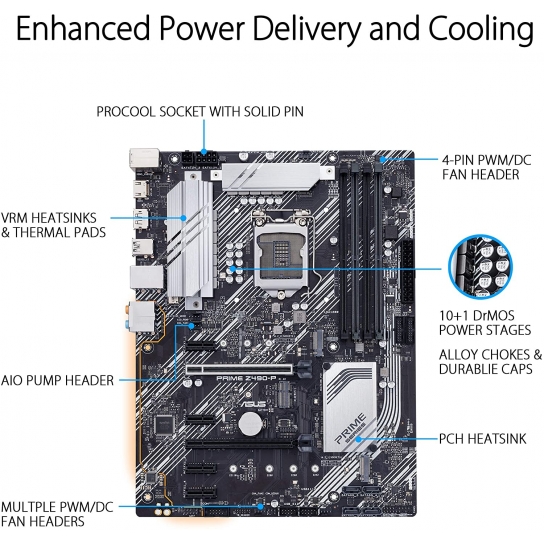

  The ASUS Prime Z490-P is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design of up to 11 DrMOS power stages, comprehensive cooling solutions, and intelligent tuning options, the ASUS Prime Z490-P provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Specifications: Brand ASUS Model PRIME Z490-P Supported CPU CPU Socket Type  LGA 1200 CPU Type Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors* * Refer to www.asus.com for CPU support list. Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipsets Chipset  Intel Z490 Memory Number of Memory Slots 4×288pin Memory Standard DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory* * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Maximum Memory Supported 128GB Channel Supported  Dual-Channel Expansion Slots PCI Express 3.0 x16 Intel 10th Gen Processors* 1 x PCIe 3.0 x16 slot (supports x16 mode) Intel Z490 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) * Support PCIe bifurcation for RAID on CPU function. PCI Express x1 4 x PCIe 3.0 x1 slots Other Slots M.2 slot (Key E) (Wi-Fi module is sold separately) Storage Devices SATA 6Gb/s  4 x SATA 6Gb/s M.2 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports SATA & PCIe 3.0 x4 mode)* M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA & PCIe 3.0 x4 mode) * When a device in SATA mode is installed on the M.2_1 socket, the SATA6G_2 port cannot be used. Intel Optane Ready Yes SATA RAID 0/1/5/10 Onboard Audio Audio Chipset  Realtek ALC887 Audio Channels  8 Channels Onboard LAN LAN Chipset Realtek RTL8111H Max LAN Speed 10/100/1000Mbps Rear Panel Ports Back I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek RTL8111H 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Onboard USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * The USB_E1 port, USB_E2 port, ADD_Gen2 header, and the two RGB headers share the bandwidth. But the ADD_Gen2 header and the two RGB headers will affect transfer rate only when you adjust their lighting effect. Other Connectors Fan and cooling related 1 x 4-pin CPU fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 1 x AURA Addressable Gen 2 header* 2 x AURA RGB headers* 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header * The USB_E1 port, USB_E2 port, ADD_Gen2 header and the two RGB headers share the bandwidth. But the ADD_Gen2 header and the two RGB headers will affect transfer rate only when you adjust their lighting effect. Physical Spec Form Factor ATX LED Lighting RGB Power Pin 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Features Features Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header Software Features: ASUS Exclusive Software Armory Crate - Aura Sync AI Suite 3 - Performance And Power Saving Utility EPU Digi+ VRM Fan Xpert 4 - EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 128MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 - 64-bit
