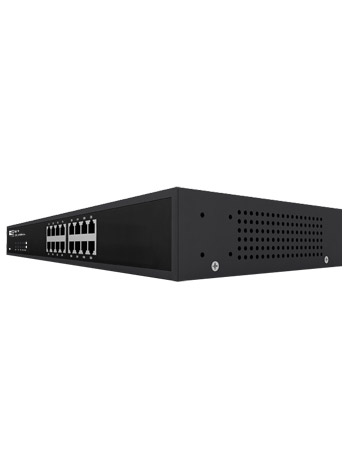

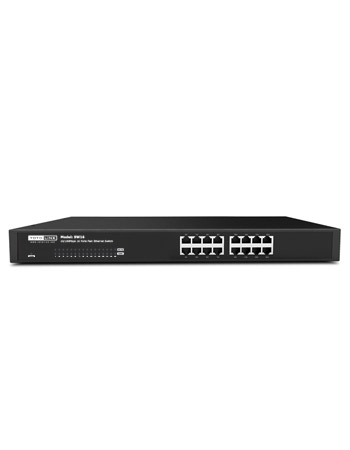

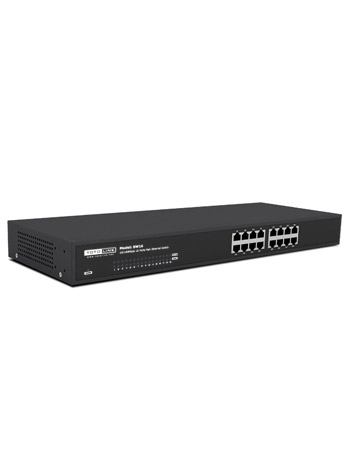

SW16 is a 16-port Fast Ethernet Switch which provides 16 10/100Mbps auto-negotiation RJ-45 ports. All ports support Auto MDI/MDIX function helps to simplify the wiring. The switch is plug-and-play and each port can be used as general ports or uplink ports. It can also be simply plugged into a server, a hub or switch using straigt cable or crossover cable.
The fast Ethernet switch complies with IEEE 802.3, IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards, providing 16 10/100Mbps auto-negotiation RJ-45 ports with LED indicators to monitor link status and activity. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX to provide maximum speed possible for each device connected to your network.
EASY TO USE
The Switch is easy to use for anyone. Just plug and play, no need to worry about the cable type, it is convenient for expanding your wired home network to more devices.
- Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards.
- Provides 16 10/100Mbps auto-negotiation ports.
- Supports IEEE 802.3x flow control for full duplex mode and backpressure for half-duplex mode.
- Supports MAC address auto-learning and auto-aging.
- LED indicators for monitoring power, link and activity.
- Plastic case, desktop or wall-mounting design.
- External power supply.
BRAND TOTO LINK
STANDARDS IEEE 802.3, IEEE 802.3u, IEEE 802.3x
INTERFACE 16*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
LED Power, Link/Activity
MAC ADDRESS LEARNING Auto-learning, auto update
MAC ADDRESS TABLE 8k
NETWORK MEDIA 10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)
EIA/TIA-568 100Ω STP (100m max.)
100Base-Tx: UTP Cat 5, 5e cable (100m, max.)
EIA/TIA-568 1100Ω STP (100m max.)
BACKUP BANDWIDTH 3.2Gbps
TRANSMISSION METHOD Store-and-forward
POWER SUPPLY 3.3V DC/2A
ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
PRODUCT DIMENSIONS 440 x 160.2 x 44.6 mm
WEIGHT 2.4 kg
IN THE BOX SW16 Switch *1
Quick Installation Guide *1
