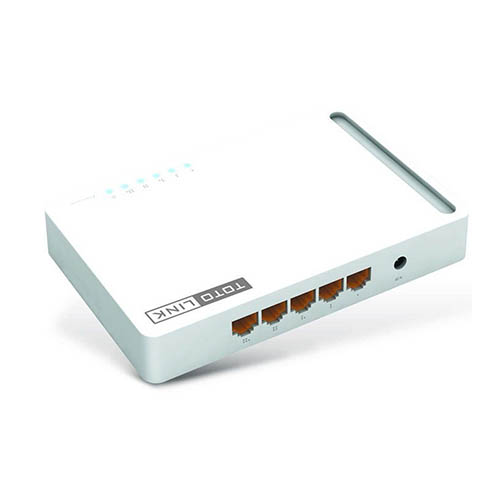

5-PORT GIGABIT ETHERNET SWITCH
S505G is a Gigabit Desktop Switch that enables you to upgrade your network to gigabit Ethernet. With full gigabit ports and compact design, S505G not onnly increases the speed of your network server, but also make Gigabit to the desktop a reality. Generally, S505G is a high performance solution for your home or office network.
GIGABIT ETHERNET SPEED
S505G provides 5 10/100/1000Mbps RJ45 ports that could greatly expand network capacity and enable instant large file transferring. All ports detect the network speed and auto-negotiate(either 10, 100, or 1000 Mbps) to provide maximum speed possible for each device connected to your network.
Auto MDI/MDIX function helps to figure out if the link needs a straight-through or cross-over connection automatically. No need to worry about cable type.
PLUG AND PLAY
No configuration required, simply plug and play for easy use. You're allowed to add up to four devices using Ethernet cable to expand your wired home network and share high speed internet with other members.
- 5 10/100/1000Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- 1K entry MAC address table and automatic address learning.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store- and-Forward Switching scheme.
- Performs non-blocking full wired speed.
- Supports Giga Lite to improve transfer rate for 4-wire UTP gigabit network.
BRAND TOTO LINK
STANDARDS IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
INTERFACE 5*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
LED 1* Power, 5*LANs
MAC ADDRESS LEARNING Auto-learning, auto-aging
MAC ADDRESS TABLE 1K
NETWORK MEDIA 10BASE-T: UTP Cat 3, 4, 5 cable
100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
BACKUP BANDWIDTH 10Gbps
TRANSMISSION METHOD Store-and-forward
POWER SUPPLY 9V DC/0.5A
ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
PRODUCT DIMENSIONS 132 x 75 x 25 mm
WEIGHT 455 g
IN THE BOX S505G Desktop Switch *1
Ethernet Cable *1
Quick Installation Guide *1
