OPTOMA

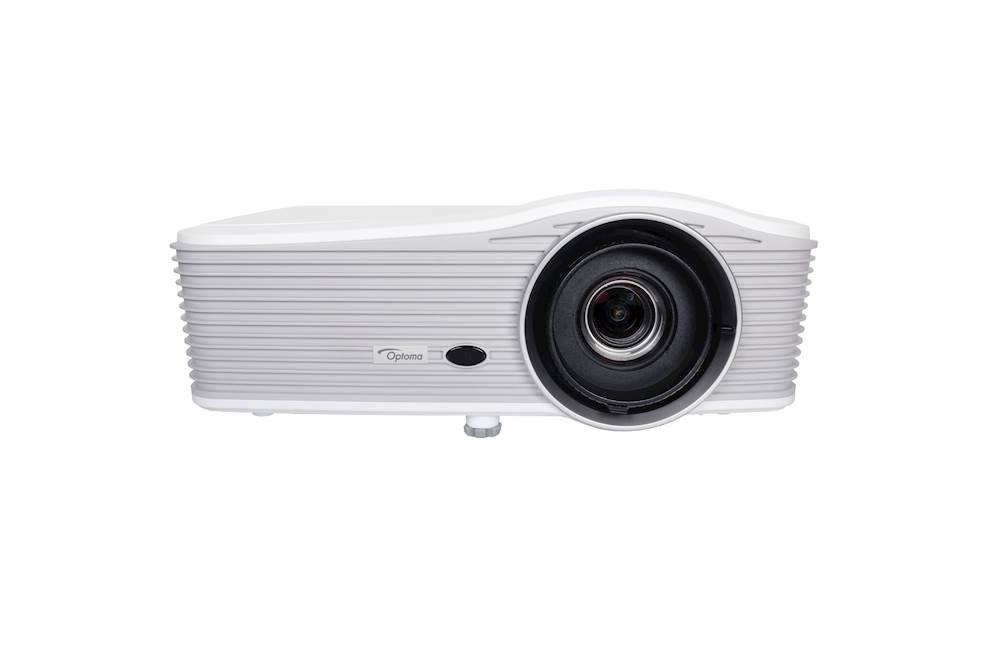

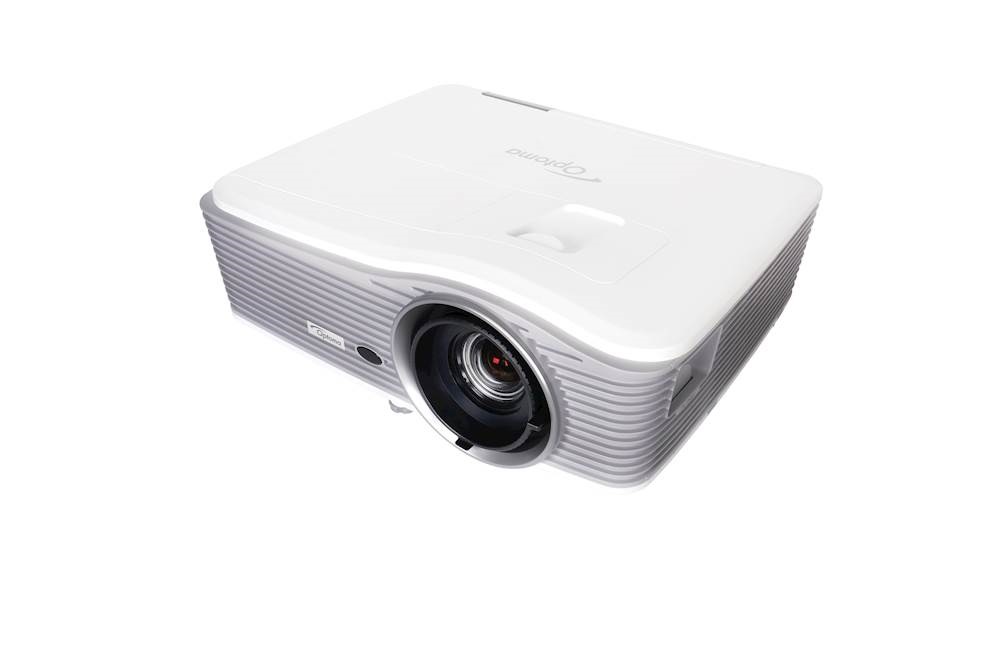

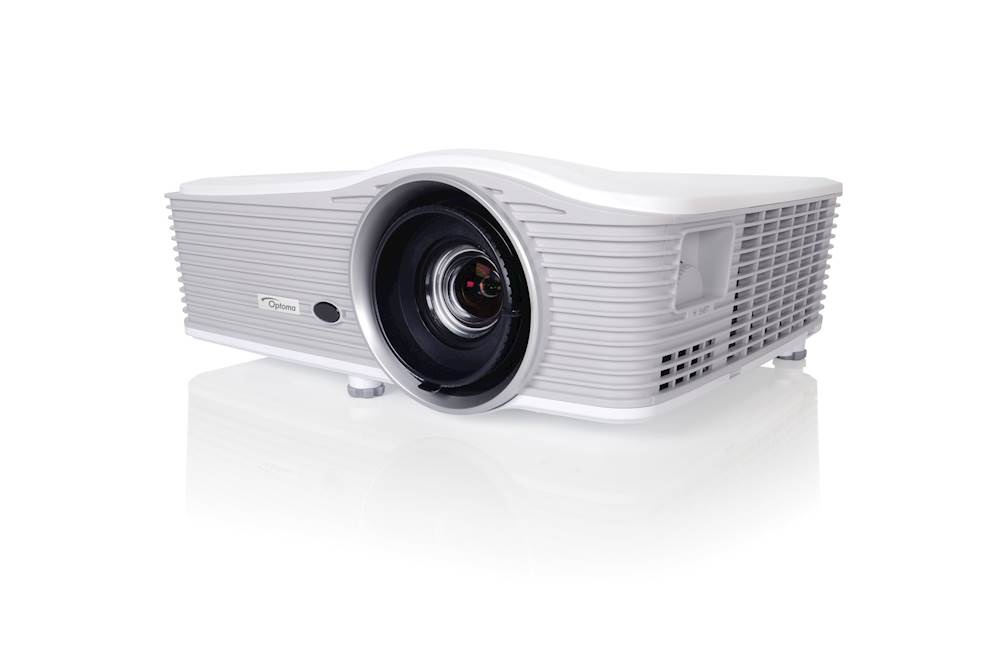

Optoma W515

Your ideal projector for corporate environments and home use.

In stock, ready to be shipped

Quantity:

Add to Cart

SKU: W515

Call Now

Chat In WhatsApp

Four-corner geometric correction for easy installation of basic stacking solutions or on uneven walls

1.8x zoom for excellent image from a short or long distance

Vertical / horizontal keystone and lens shift for various applications

Bright projection at 6000 ANSI lumens for large installations

Full control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link and Telnet

Two 10-watt speakers for excellent sound

ECHNICAL SPECIFICATIONS

360 Operation	Not supported
Aspect Ratio	16:10
Audio	20 Watt Speaker
Brightness	6000 ANSI lumens
Compatible Aspect Ratio	16:10 Native, 16:9 and 4:3 Compatible
Contrast Ratio	10,000:1 (full on/full off)
Control Unit	RS232, RJ45
Display Technology	Single 0.65″ WXGA chip, DLP™ Technology by Texas Instruments
Displayable Colors	1.07 billion
Keystone Correction	±30° Vertical; ±30° Horizontal
Light Source Type	365W
Light Source Life	5,000/3,000 (ECO/Bright)
Lens Shift	Vertical: 20% to -10%; Horizontal: ±10%
Maximum Resolution	1080p (1920 x 1080)
Native Resolution	WXGA (1280 x 800)
Noise Level	28 dB
Offset	105% (± 5% variance)
Operating Temperature	41-113°F (5-45°C), 85% max humidity

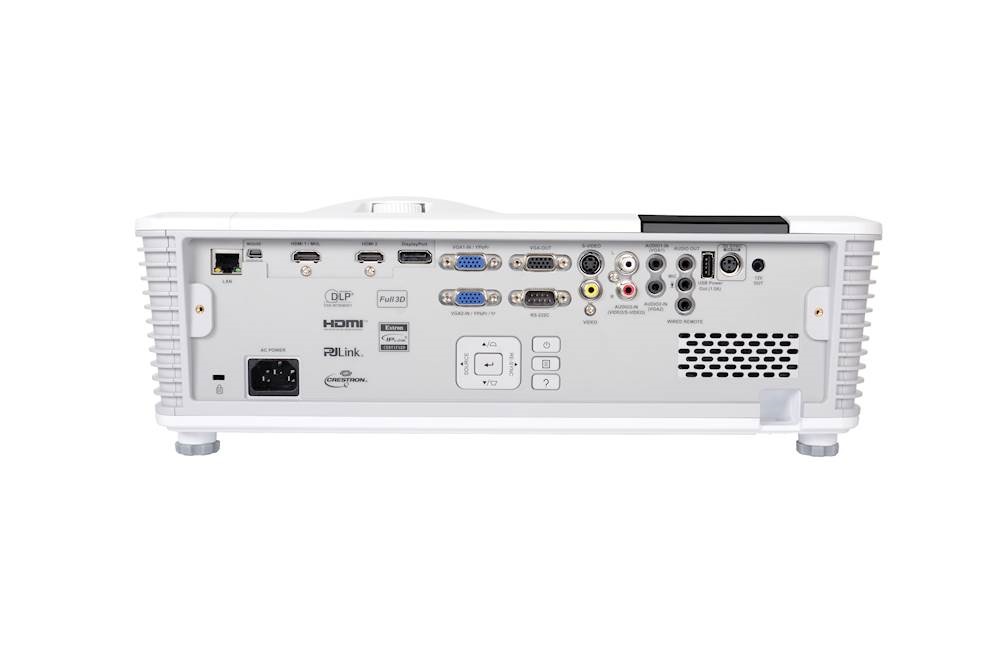

Outputs	VGA out, audio out (3.5mm), +12V trigger, USB-A power, 3D VESA port
Portrait Mode	Not supported
Power Consumption	445W Max (Bright mode), 335W (Eco mode)
Power Supply	AC input 100-240V, 50-60 Hz, auto-switching
Projection Distance	4.26′ – 26.9′
Projection Lens	F=2.5 – 3.39, F=17.63 – 31.36mm Manual Focus
Projection Method	Front, rear, ceiling count, tabletop
Projection Screen Size	26.6" – 302.1"
Remote Control	IR and wired control
Throw Ratio	1.26 – 2.268:1 (distance/width) – 5% variance
Uniformity	80%
Zoom Type	1.8x manual

COMPATIBILITY SPECIFICATIONS

3D Compatibility	Side-by-Side: 1080i50 / 60, 720p50 / 60, Frame-pack: 1080p24, 720p50 / 60, Over-Under: 1080p24, 720p50 / 60
Computer Compatibility	HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Horizontal Scan Rate	15.375 – 91.146 KHz
Optional Wireless	Yes
RoHS	Compliant
Vertical Scan Rate	24 – 85 Hz, 120 Hz, 144 Hz
Video Compatiblity	NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)

PHYSICAL SPECIFICATIONS

Dimensions (W x H x D)	W 16.7" x D 13.5" x H 6.3"
Security	Security bar, Kensington lock, password protection, keypad lock

OTHER

Optional Accessories	Ceiling Mount, Cat6 HDBaseT kit, DLP Link™ 3D glasses
Standard Accessories	AC Power Cord, VGA Cable, remote control, batteries for remote, multilingual CD-ROM user’s manual, quick start guide, and warranty card
UPC	796435 42 796 2
Warranty Info	3-year Optoma Express Warranty, 1-year on lamp

Warranty: 2 years on Projector; 1 year or 1000 hours on lamp
