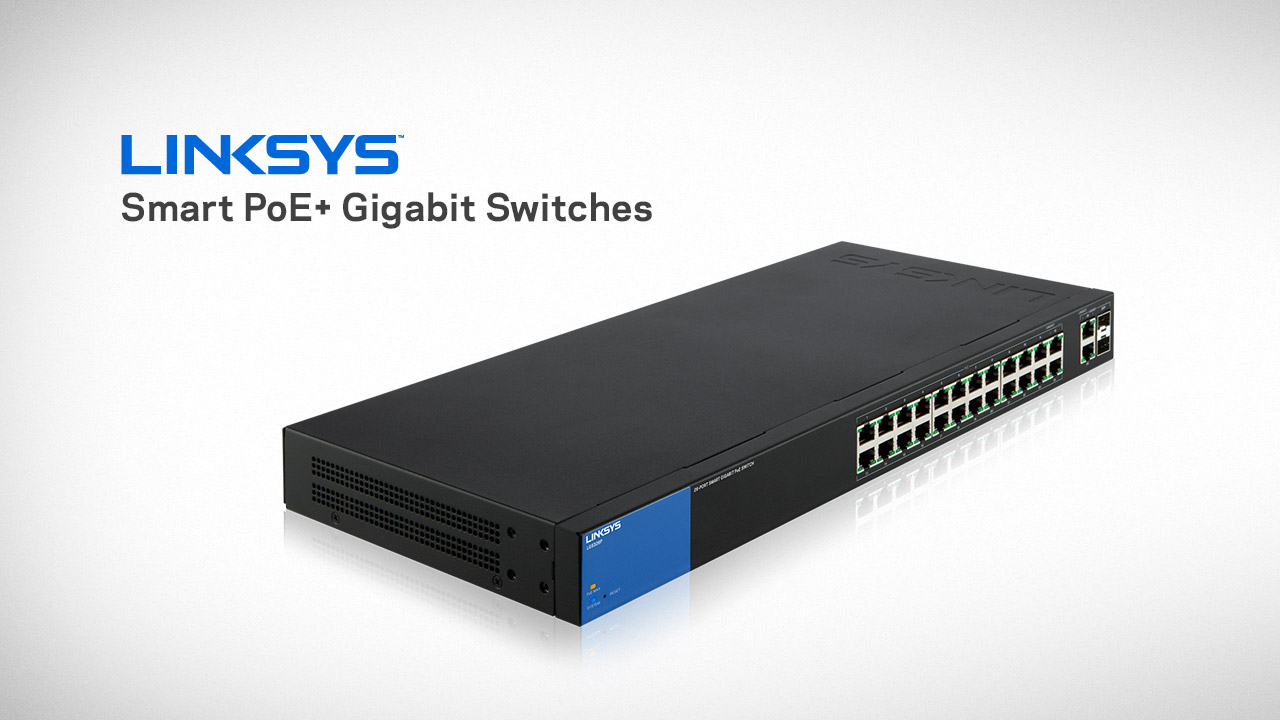

Linksys Business LGS326P 24-Port Gigabit PoE+ (192W) Smart Managed Switch + 2x Gigabit SFP/RJ45 Combo Ports

Designed for business-class management, security, speed, and quality of service.

Rs 70,125

Weight : N/AKG
Code : LGS326P-AP
Dial/Whatsapp/Viber 9851134183 to order
Product Description


  •  Integrated Power Over Ethernet Plus
  • Proven Performance and Reliability
  • Easy Configuration and Management
  • Advanced Network Security
  • IPv6 Support
  • Enhanced QoS
  • Enhanced Security
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard
Model Name:
Network Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3ad
IEEE 802.3az
IEEE 802.3af
IEEE 802.3at
IEEE 802.1d
IEEE 802.1q/p
IEEE 802.1X
Number of Ports with PoE+ Support:
128 MB
System (blue), Link/Act/PoE (green/green)
System Power Consumption without PoE+:
Forwarding Rate:
38.69 Mpps
Switching Capacity:
52 Gbps
MAC Address Table Size:
Jumbo Frame (FE, GE):
Two, 8,200 rpm
Dimensions (LxWxH):
440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
3.096 kg (6.81 Ibs.)
Power Dedicated to PoE+:
192 W
Power Input:
50-60 Hz
(3.5A max)
Operating Temperature:
0 to 50°C (32 to 122°F)
Storage Temperature:
-40 to 70°C (-40 to 158°F)
Storage Humidity:
10 to 90% RH (non-condensing)
Spanning Tree:
IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
Link Aggregation:
IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
Number of VLANs Supported:
128 active VLANs (4,096 range)
Auto Voice VLAN:
VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping:
IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
HOL Blocking Prevention:
Head of line (HOL) blocking prevention
Port Mirroring:
Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer
Security Features:
802.1x Radius authentication
DHCP snooping
IP-MAC binding
Port security supports limited dynamic lock and locked MAC address
Management access control
Storm Control:
Broadcast, flooding, and multicast
Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Management Interface:
Other Management:
Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
Version 1
Version 2c
Firmware Upgrade:
Web Browser (HTTP/HTTPS)
QoS - Class of Service:
Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
Combo Ports (RJ45 + SFP):
2 combo on ports g25, g26
Copper FE/GE Ports (RJ45):
g01–g12, g13-g24
Green Power Mode:
EEE+, Short Reach + Energy Detect
QoS - Priority Levels:
4 hardware queues
QoS - Scheduling:
Priority queuing and weighted round robin (WRR)
Total System Ports:
