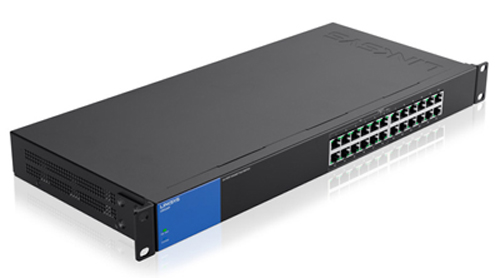

Linksys LGS124P 24-Port Business Gigabit PoE+ Switch

Upgrade the data paths of your local wired network to information superhighways with 24-port desktop Gigabit PoE+ switches.

Code

: LGS124P-AP

Manufacturer

Availability

: In Stock

Rs. 54000
Qty :



  1.  Wired connection speed up to 1,000 Mbps
  2. 24 Gigabit Ethernet autosensing ports
  3. Power over Ethernet Plus (PoE+) support
  4. Easy plug & play connection
  5. QoS
  6. Meets EEE (Energy Efficient Ethernet) 802.3az standard
TECHNICAL SPECS
Model Name:

LGS124P

Network Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
IEEE 802.3af
802.3at (PoE+)
Ports:
24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W
LEDs:
Link, speed, activity, and PoE indicators
Performance:
Full line rate and forwarding rate of 64B frame at:
1.488 Mpps for 1000M port
0.1488 Mpps for 100M port
0.01488 Mpps for 10M port
MAC Address Table Size:
8,000 entries
Bandwidth:
48 Gbps (non-blocking)
Fans:
One
Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables.
Dimensions (LxWxH):
440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
Weight:
2.758 kg (6.08 lbs)
Power Consumption:
7.79 W / 17.65 W
Power Consumption:
7.79 W / 17.65 W
Power Input:
100–240 VAC, 50/60 Hz
Power Saving:
Cable connected detection, sleep mode
Power Supply:
Internal
Operating Temperature:
0–50°C (32–122°F)
Storage Temperature:
-40–70°C (-40–158°F)
Operating Humidity:
10–90% (non-condensing)
Storage Humidity:
10–90% (non-condensing)
Mounting:
Rack
Quality Of Service:
802.1p and DSCP
Regulatory Compliance:
FCC Class A, CE, UL, CB
Warranty and Support:
Limited Lifetime
